The Call Operations API enables applications to perform real-time operations on an active Smartflo call. It allows supervisors, administrators, and integrated business applications to manage live conversations programmatically without requiring manual intervention from the Smartflo Portal.

Using this API, you can perform the following operations on an ongoing call:

• Monitor – Listen to an active conversation silently without either participant being notified.
• Whisper – Privately communicate with the agent while the customer continues to hear only the agent.
• Barge – Join the active conversation and communicate with both the customer and the agent.
• Transfer – Transfer an active call to another Smartflo Agent, Softphone/Extension, Department, Inbound Queue, IVR, SIP Trunk, or an external mobile number.

The API identifies the active conversation using either the Call ID (call_id) or the Reference ID (ref_id) generated by Smartflo during call initiation. Based on the requested operation and destination, Smartflo validates the request and performs the requested action.

Key Features

• Perform real-time call control on active calls.
• Support supervisor monitoring and coaching.
• Transfer calls across multiple Smartflo destinations.
• Support both Call ID (call_id) and Reference ID (ref_id) for identifying the active call.
• Integrate with Webhooks for complete call lifecycle tracking.

Important

• This API works only for active (live) calls.
• Either call_id or ref_id must be provided to identify the active call.
• Once the call has ended, no further operations can be performed.

Typical Flow

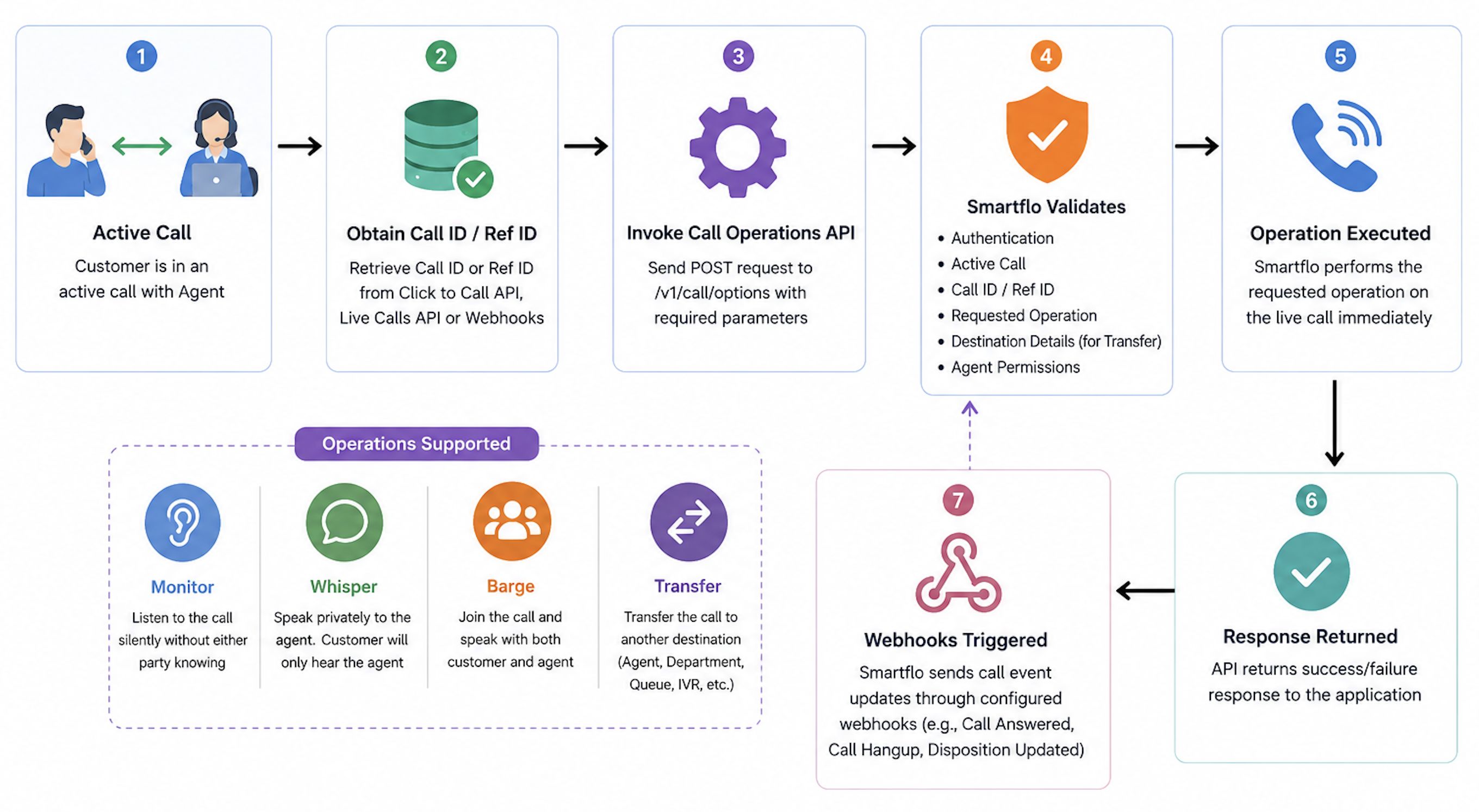

The diagram below illustrates the high-level workflow of the Call Operations API. It shows how an application identifies an active call using either the Call ID (call_id) or Reference ID (ref_id), invokes the Call Operations API, and how Smartflo validates and executes the requested operation on the live call.

📘 Notes!

• Call Operations can only be performed on an active (live) call.
• Either call_id or ref_id can be used to identify the active call.
• Depending on the requested operation, Smartflo validates the destination and executes the action immediately.
• If both call_id and ref_id are provided, Smartflo can use the provided identifiers to identify the active call.

How it Works

The Call Operations API enables applications to control an active Smartflo call programmatically by performing actions such as Monitor, Whisper, Barge, or Transfer.

The application first identifies the active call using either the Call ID (call_id) or Reference ID (ref_id) and then sends a request to the API with the desired operation and the required parameters.

Smartflo validates the request, verifies that the call is still active, validates any operation-specific parameters or destination details, and executes the requested operation in real time.

The diagram below provides a high-level overview of the Call Operations workflow:

📘 Notes!

• ref_id is mandatory in every API request.
• Transfer supports both agent_id and intercom, depending on the selected destination.

Request Headers

The following request headers are required to successfully invoke the Call Operation API.

Request Parameters

Use the following parameters to specify the call operation and identify the active call. Depending on the selected operation, additional parameters such as agent_id or intercom may be required.

Note: At least one of call_id or ref_id must be provided in the request to identify the active call.

Sample Response (Success)

When the request is successfully validated and accepted, the API returns a success response indicating that the requested call operation has been initiated.

{
    "success": true,
    "message": "Transfer succeeded"
}

Error Response Example

The following example shows the response returned when the API request cannot be processed due to invalid input, authentication issues, or other request validation errors.

{
  "success": false,
  "message": "Invalid Ref ID."
}

Response Parameters

The following table describes the parameters returned in a successful API response.

Supported Operation Destinations

The Call Operations API supports different destination types depending on the operation being performed. Monitor, Whisper, and Barge are agent-based operations and always require the agent_id parameter. Transfer supports both agent_id and intercom, depending on the selected destination.

The table below summarizes the supported destinations and the request parameter required for each operation.

📘 Notes!

• Monitor, Whisper, and Barge are supported only with the agent_id parameter.
• Transfer supports both agent_id and intercom:
  • Use agent_id to transfer the call directly to another Smartflo Agent.
  • Use intercom to transfer the call to an External Mobile Number, Softphone/Extension, Department, Inbound Queue, IVR, or SIP Trunk.

Operation Use Cases

The following examples demonstrate how to perform different Transfer and Barge operations using the Call Operations API. In each example, replace the sample values with your own Call ID/Ref ID and destination identifier.

1. Transfer to an External Mobile Number

Use this operation to transfer an active call to a valid external mobile or landline number. This is commonly used for remote agents, field executives, or on-call support personnel.

{
  "type": "4",
  "ref_id": "175XXXX218.8118",
  "intercom": "9196XXX9832"
}

2. Transfer to a Softphone / Extension

Transfer the active call to another Smartflo Softphone or Extension by providing the configured extension number.

{
  "type": "4",
  "ref_id": "1758782566.8131",
  "intercom": "0602XXX70085"
}

3. Transfer to a Smartflo Agent

Transfer the ongoing call directly to a Smartflo Agent configured on the platform by specifying the Agent ID. The Agent ID can be obtained from the Smartflo Portal.

{
  "type": "4",
  "ref_id": "175XXXX218.8118",
  "intercom": "05080XX4"
}

4. Transfer to a Department

Transfer the active call to a Department by specifying the Department "Transfer Code". Smartflo automatically routes the call to an available agent based on the configured department routing strategy.

{
  "type": "4",
  "ref_id": "175XXXX218.8118",
  "intercom": "80XX4"
}

5. Transfer to an Inbound Queue

Transfer the active call to an Inbound Queue by specifying the Queue "Transfer Code". Smartflo places the caller into the queue and routes the call according to the configured queue strategy.

{
  "type": "4",
  "ref_id": "175XXXX218.8118",
  "intercom": "70XX4"
}

6. Transfer to an IVR

Transfer the active call to another IVR by specifying the IVR "Transfer Code" in the intercom parameter. This allows the caller to continue to a different IVR menu or self-service flow.

{
  "type": "4",
  "ref_id": "175XXXX218.8118",
  "intercom": "90XX4"
}

7. Transfer to a SIP Trunk

Transfer the active call to an external PBX or third-party telephony platform by specifying the configured SIP Trunk "Transfer Code".

{
  "type": "4",
  "ref_id": "175XXXX218.8118",
  "intercom": "60XX4"
}

Common Error Messages

The following table lists common error messages returned by the Call Operations API, along with their possible causes and recommended resolutions.

Call Status & Webhooks

The Call Operations API performs actions on an active call and returns an immediate acknowledgement indicating whether the request has been accepted. To track the progress and final outcome of the call after the operation is performed, configure Smartflo Webhooks.

The following webhook events are recommended for monitoring the complete call lifecycle:

Note: Configuring Webhooks is recommended to receive real-time updates on call progress and final call status after performing Monitor, Whisper, Barge, or Transfer operations.
